Fox Thermal Model FT4A Thermal Gas Mass Flow Meter

Award Winning Model FT4A

The Fox Thermal Model FT4A was the first meter to use the expanded Gas-SelectX® gas selection menu and the 3rd Generation DDC-Sensor™ design.

Key Features:

  • Insertion & Inline Styles
  • DDC-Sensor™ Technology
  • Gas-SelectX® Gas Selection Menu
  • CAL-V™ Calibration Validation
  • Scroll down for more features/benefits!

Applications:

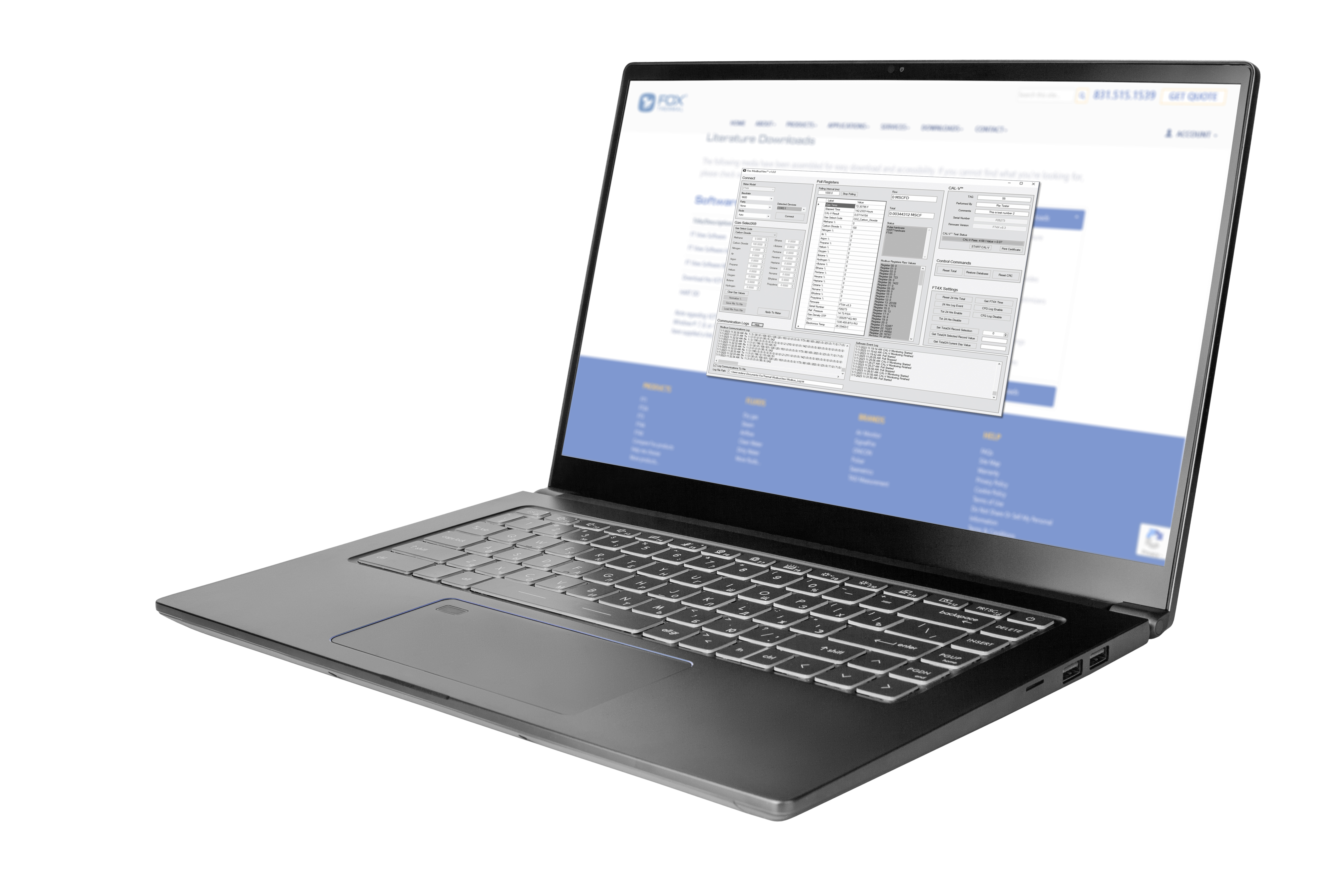

The free FT4A View™ software from Fox Thermal is a great way to connect to the Model FT4A from a PC or laptop to access the meter settings in a quick and visually appealing way. This software offers:

  • Quick access to all configuration parameters using pop-up windows and pull down menus
  • Selection of measurement units, flow and temperature ranges, alarm settings, and more
  • Gas-SelectX® Gas Selection Menu
  • CAL-V™ Calibration Validation Certificate
  • Data Logging to a Microsoft® Excel spreadsheet
  • Display of alarm codes
  • Storage of meter configurations to a file that can be archived
  • View raw data that can be used to diagnose or troubleshoot your meter

Note: For FT4A View™ software to function, please be sure to have a working version of Microsoft® Office installed on the PC before installing FT4A View™.

USB Driver and the Fox Thermal FT4A View™ Software
A USB driver is needed for FT4A View™ to run. If the USB drive does not install automatically, you will need to download it by following this link. Instructions are included on how to install it correctly.

The CAL-V™ test is used for Calibration Validation on the Model FT4A. This test does the following:

  • Tests the functionality of the sensor and its associated signal processing circuitry
  • Checks for build-up on sensor that could affect calibration
  • Ensures that the meter still retains its original NIST-traceable calibration

Use this test according to the manufacturer’s instructions in order to validate the calibration of the meter.

The Gas-SelectX® feature is a revolutionary new feature that allows the user to have a meter capable of measuring more than 10 different gases accurately. The user can choose from the list of gases below or mix any to create a custom gas mix specifically for their application! Every FT4A flowmeter is pre-calibrated for:

Pure Gas Menu

  • Air
  • Argon
  • Butane
  • Carbon Dioxide
  • Ethane
  • Ethylene
  • Helium
  • Hydrogen
  • Methane
  • Natural Gas*
  • Nitrogen
  • Oxygen
  • Propane
  • Propylene

Mixed Gas Menu

  • Air
  • Argon
  • Butane
  • Carbon Dioxide
  • Ethane
  • Ethylene
  • Helium
  • Hydrogen
  • Methane
  • Nitrogen
  • Oxygen
  • Propane
  • Propylene

Oil & Gas Menu

  • Methane (C1)
  • Ethane (C2)
  • Propane (C3)
  • Iso Butane (C4)
  • Normal Butane (C4)
  • Pentanes (C5)
  • Hexanes (C6)
  • Heptanes (C7)
  • Octanes (C8)
  • Nonanes+ (C9+)
  • Carbon Dioxide
  • Nitrogen
  • Ethylene
  • Propylene

Any combination of gases in the Mixed Gas and Oil & Gas Menus can be mixed in 0.1% increments to create a custom gas mix. The Gas-SelectX® feature can be accessed through the front panel of the meter or by using the free FT4A View™ software tool.

*Natural gas refers to pipeline-quality dry natural gas. Fox Thermal uses the NAESB standard as the default composition for natural gas in the Pure Gas menu of Gas-SelectX®. Naturally occurring gas - from oil fields commonly referred to as Associated Gas – may have a different percentage of gas constituents in its composition. Use the Mixed Gas or Oil & Gas Menu in Gas-SelectX® to program the correct percentages of the natural gas or contact Fox Thermal for further information.


Gas-SelectX® Datasheet
Configure the FT4A

Flow meter accuracy is often dependent on achieving a uniform flow profile near the center of the pipe. Distortion and swirl are disturbances in flow that can be remedied either by extending the length of space between the cause of the disturbance and the sensing element (increasing straight pipe runs) or by adding a flow conditioner to correct the disturbance. Flow conditioners installed upstream of flow meters reduce the need for long, straight pipe runs. Common Features for Fox Thermal FC20 Flow Conditioner:

  • For use with all Fox insertion style flow meters
  • Reduces the need for long straight pipe runs
  • Negigible pressure drop
  • Precision, laser-cut design
  • 316 stainless steel material

More Info

Common Features for Fox Thermal Model FT4A Flow Meter:

  • Measures process gas flow rate/total and temperature
  • Insertion probes (for 1.5" - 70" pipes); Inline flow bodies with NPT ends (¾" - 3" pipes); Inline 150 lb. & 300 lb. Flanged flow bodies (¾" - 6" pipes)
  • Equipped with the 3rd Generation DDC-Sensor™ (Direct Digitally Controlled)
  • Gas-SelectX® expanded gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration
  • One standard 4-20mA output proportional to mass flow rate; HART communication option
  • Second output can be ordered for pulse/alarm or Modbus RTU (RS485)
  • Optional on-board display and configuration panel
  • Click the Approvals tab for Model FT4A Agency Approvals.
  • Calibration Validation with the CAL-V™ feature.
  • A USB connection is standard (free FT4A View™ Software)
  • Wide measurement range
  • Flow Accuracy for air: ±1% R ±0.2% FS; Flow accuracy for other gases: ±1.5% R ±0.5% FS
  • 10-30 VDC in local enclosures
PLEASE TURN YOUR DEVICE TO LANDSCAPE ORIENTATION.

FT4A Flow Meter Specs

Technical Specifications
Fox Thermal Model FT4A Thermal Mass Flow Meter & Temperature Transmitter
Performance Specs
Type
Insertion
Inline
Flow Accuracy:
Air: ± 1% of reading ± 0.2% of full scale.
Other Gases: ± 1.5% of reading ± 0.5% of full scale.
Accuracy specification applies to customer's selected flow range
Straight, unobstructed pipe requirement:
15 diameters upstream; 10 downstream.
8 diameters upstream; 4 downstream.



Flow Repeatability:
± 0.2% of full scale
Flow Response Time:
0.8 seconds (one time constant)
Temperature Accuracy:
± 1° F (± 0.6° C)
Calibration:
Factory Calibration to NIST-traceable standards
CAL-V™: In situ, operator-initiated calibration validation
Operating Specs
Type
Insertion
Inline
Flow Units (field selectable):
SCFM, SCFH, NM3/M, NM3/H, NM3/D, NLPS, NLPM, NLPH, MCFD, MSCFD, SCFD, MMSCFD, MMSCFM, SM3/M, SM3/D, SM3/H, LB/S, LB/M, LB/H, LB/D, KG/S, KG/M, KG/H, SLPM, MT/H
Flow Rates:
15 to 60,000 SFPM (0.07 to 283 NMPS)
Turndown:
up to 1000:1; 100:1 typical
Flow Ranges:
Pipe Size SCFM MSCFD NM³/HR
1.5" (40mm) 0 - 840 0 - 1,220 0 - 1,325
2" (50mm) 0 - 1,400 0 - 2,020 0 - 2,210
2.5" (63mm) 0 - 2,000 0 - 2,880 0 - 3,150
3" (80mm) 0 - 3,100 0 - 4,440 0 - 4,890
4" (100mm) 0 - 5,300 0 - 7,650 0 - 8,360
6" (150mm) 0 - 12,000 0 - 17,340 0 - 18,930
8" (200mm) 0 - 20,840 0 - 30,020 0 - 32,870
10" (250mm) 0 - 32,800 0 - 47,250 0 - 51,740
12" (300mm) 0 - 46,600 0 - 67,180 0 - 73,500
Pipe Diameter SCFM MSCFD NM³/HR
0.75" (20mm) 0 - 220 0 - 320 0 - 350
1" (25mm) 0 - 360 0 - 520 0 - 570
1.25" (32mm) 0 - 625 0 - 900 0 - 990
1.5" (40mm) 0 - 840 0 - 1,220 0 - 1,325
2" (50mm) 0 - 1,400 0 - 2,020 0 - 2,210
2.5" (63mm) 0 - 2,000 0 - 2,880 0 - 3,150
3" (80mm) 0 - 3,100 0 - 4,440 0 - 4,890
4" (100mm) 0 - 5,300 0 - 7,650 0 - 8,360
6" (150mm) 0 - 12,000 0 - 17,340 0 - 18,930
Note: To determine if the FT4A will operate accurately in other pipe sizes, divide maximum flow rate by the pipe area. The application is acceptable if the resulting velocity is within the velocity range above.
Note: Consult factory for flow ranges above those listed. Inline meters above 5,000 SCFM (7,900 NM3/H) air may require third party calibration.
Gas Pressure (max):
w/o Retractor: 740 psig (51.02 barg)
with Retractor: 150 psig (10.3 barg)


316 SS inline w/NPT ends: 500 psig (34.5 barg)
316 SS inline w/150lb flanges: 230 psig (16 barg)
316 SS inline w/300lb flanges: 600 psig (41 barg)
CS inline w/NPT ends: 500 psig (34.5 barg)
CS inline w/150lb flanges: 285 psig (20 barg)
CS inline w/300lb flanges: 740 psig (51 barg)
Check with factory for higher pressure options.
NOTE: When teflon ferrule option ordered, gas pressure is 60psig (4.1 barg) maximum.
Relative Humidity:
90% RH maximum; non-condensing
Temperature:
DDC-Sensor™: -40 to 250°F (-40 to 121°C)
Enclosure: -40 to 158°F (-40 to 70°C)
*Note: Display dims below -4°F (-20°C); function returns once temperature rises again.
Input Power:
12 to 24VDC, 6 watts
Full input power input range: 10 to 30VDC
A 20 Watt or greater power supply is recommended to power the FT4A to ensure the power supply can provide enough current under all temperature, ventilation, and power on conditions.
Inputs/Outputs
  • All outputs and communication circuits are galvanically isolated.
  • Standard 4-20mA output proportional to the flow rate; fault indication per NAMUR NE43; HART communication option.
  • The second output can be ordered for pulse/alarm or Modbus RTU (RS485).
  • Isolated pulse output: 5 to 24VDC, 20mA max, 0 to 100Hz for flow.
  • The pulse output can be used as an isolated solid state output for alarms.
Port:
Mini USB communication port is standard.
Software:
The free PC-based software tool - FT4A View™ - provides complete configuration, remote process monitoring, and data logging functions.
Optional serial communication:
Modbus RTU (RS485) (when no pulse output has been ordered).
4-20mA and Pulse Verification:
Simulation mode used to align 4-20mA output and pulse output (if ordered) with the input to customer’s PLC/DCS.
Physical Specs
Type
Insertion
Inline
Sensor Material:
316 stainless steel standard.
Enclosure:
NEMA 4X, Aluminum, dual conduit entries with ¾" FNPT.
Retractor Assemblies:
150 psig (10.3 barg) max.

N/A
Installation:
Fox Thermal-supplied compression fitting connects to customer-supplied 1" female coupling welded to pipe.
Compression fitting included with flow body.

FT4A Approvals

CE: Approved

  • EMC Directive; 2014/30/EU
  • Emissions and Immunity Testing: EN61326-1:2013
  • Pressure Equipment Directive: 2014/68/EU
  • Weld Testing: EN ISO 15614-1 and EN ISO 9606-1, ASME B31.3

FM (U.S.) and FMc (Canada): Approved

  • Class I, Division 1, Groups B, C, D;
  • Class II, Division 1, Groups E, F, G;
  • Class III, Division 1; T4, Ta = -40°C to 70°C;
  • Class I, Zone 1, AEx/Ex db IIB+H2 T4; Gb Ta = -40°C to 70°C; Type 4X, IP66/67

ATEX (FM16ATEX0013X): Approved

  • II 2 G Ex db IIB+H2 T4; Gb Ta = -40°C to 70°C; IP66/67
  • II 2 D Ex tb IIIC T135°C; Db Ta = -40°C to 70°C; IP66/67

IECEx (IECEx FMG 16.0010X): Approved

  • Ex db IIB+H2 T4; Gb Ta = -40°C to 70°C; IP66/67
  • Ex tb IIIC T135°C; Db Ta = -40°C to 70°C; IP66/67

ATEX and IECEx Standards:

EN 60079-0:2012 + A11:2013
EN 60079-1:2014
EN 60079-31:2014
EN 60529:1991 + A1:2000

IEC 60079-0:2011
IEC 60079-1:2014
IEC 60079-31:2013
IEC 60529:2001

Optional items available for the Model FT4A Flow Meter:

Talk with our application specialist or a rep near you for sizing and materials requirements

  • FC20 Flow Conditioner for use with insertion style FT4A
  • FT4A Power Supply
  • Flow meter cleaned and bagged for Oxygen service
  • Certificate of Conformance
  • Certificate of Origin
  • Extra Instruction Manual
  • USB Cable
  • Teflon Ferrule Kit
  • Stainless Steel Tags
  • Retractors

FT4A Downloads

Model FT4A Information to View and/or Download
Model FT4A Datasheet
FT4A Model Codes
FT4A Flowmeter Features
FT4A Procurement Specifications
FT4A Instruction Manual
Troubleshooting Guide
CAL-V™ Certificate
Gas-SelectX® Datasheet
FT4A Power Supply Datasheet
Model FT4A View™ Information to View and/or Download
FT4A View™ Software
FT4A View™ Datasheet
FT4A View™ Manual
VCP Driver (for FT4A View™ Software)

Note regarding VCP Driver: If the PC is connected to the Internet and running Windows® 7, 8, or 10, the PC will try to automatically load the VCP driver. If the driver does not load automatically, we have supplied a link above.

Other Downloads

FT4A Dimensional Drawings

FT4A Insertion Models
Local electronics, probe without retractor
Local electronics, probe with retractor
FT4A Inline Models
Local electronics, NPT end connections
Local electronics, 150 lb. flange end connections
Local electronics, 300 lb. flange end connections


FT4A Awards

Winner of the 2017 Flow Control Innovation Award

Overall Winner for Flow Control’s 2017 Innovation Award!

As the Overall Winner of the 2017 Flow Control Innovation Awards, the Fox Thermal Model FT4A is the newest Thermal Gas Mass Flow Meter offered from Fox Thermal.

The Model FT4A has been been awarded the Overall Winner for this award due to its innovative design elements such as the 2nd Generation DDC-Sensor™ technology platform and the new expanded Gas-SelectX® gas menu selection tool. The Model FT4A measures gas flow rate in standard units without the need for temperature and pressure compensation.

Thank you for voting!

Read more in the case study.


Winner of the 2017 Processing Breakthrough Products Award

Winner of the Processing Magazine’s 2017 Breakthrough Product Award!

The Model FT4A is the latest product from Fox Thermal making waves in the flow meter market. The FT4A has won the 2017 Breakthrough Product Award from Processing Magazine.

The expanded Gas-SelectX gas selection menu, operated on an advanced platform made possible by the new 2nd generation DDC-Sensor™, has made an impression and paved the way for the Model FT4A to win this award.

The Model FT4A was designed for use in Oil & Gas applications and any application that has changing gas compositions. The Gas-SelectX menu allows the user to change the gas composition in the field without having to send the meter back to the factory for re-calibration thus saving the customer time, money, and avoiding process shut-downs. Click the green button on the left to check out the FT4A Product page for more information.

View the award announcement.

Fox Thermal Model FT4A Flow Meter

The Fox Thermal Model FT4A Thermal Gas Mass Flow Meter offered from Fox Thermal.

The Model FT4A measures gas flow rate in standard units (SCFM, NM³/hr, LBS/HR, KG/HR & many more) without the need for temperature and pressure compensation.

A free software tool – FT4A View™ - is available for the Model FT4A that allows the user to connect to and configure the FT4A using a PC or laptop.

Common Features for Fox Thermal Model FT4A Flow Meter:

  • Measures process gas flow rate/total and temperature
  • Insertion probes (for 1.5" - 70" pipes); Inline flow bodies with NPT ends (¾" - 3" pipes); Inline 150 lb. & 300 lb. Flanged flow bodies (¾" - 6" pipes)
  • Equipped with the 2nd Generation DDC-Sensor™ (Direct Digitally Controlled)
  • Gas-SelectX® expanded gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration
  • One standard 4-20mA output proportional to mass flow rate; HART communication option
  • Second output can be ordered for pulse/alarm or RS485 Modbus RTU
  • Optional on-board display and configuration panel
  • Click the Approvals tab for Model FT4A Agency Approvals.
  • Calibration Validation with the CAL-V™ feature.
  • A USB connection is standard (free FT4A View™ Software)
  • Wide measurement range
  • Flow Accuracy for air: ±1% R ±0.2% FS; Flow accuracy for other gases: ±1.5% R ±0.5% FS
  • 10-30 VDC in local enclosures

For complete specs please see the Fox Thermal Model FT4A Flow Meter Datasheet.

This website stores cookies on your computer. These cookies are used to collect information about how you interact with our website and allow us to remember you. We use this information in order to improve and customize your browsing experience and for analytics and metrics about our visitors both on this website and other media. To find out more about the cookies we use, see our Cookie Policy and our Privacy Policy. We won't track your information when you visit our site.

But in order to comply with your preferences, we'll have to use just one tiny cookie so that you're not asked to make this choice again.


Cookie Settings Accept Decline

Asking the right questions
for over 25 years.
