Gas flow meters are essential tools for managing aerobic and anaerobic processes at wastewater treatment plants. Thermal mass type flow meters from Fox Thermal are the ideal solution for measuring gas flow rates, reducing costs, and meeting emissions requirements for greenhouse gases.
Thermal mass flow meters require no additional pressure or temperature compensation instrumentation and unlike PD or turban meters, they have no moving parts that can wear or bind so they require no maintenance.
Anaerobic wastewater digesters produce biogas mixtures that can change over time. To reprogram the percentages of component gases in your flow meter and avoid sending it back to the factory for recalibration, you need a more flexible solution.
Compared to DP meters, Fox Thermal mass flow meters provide a large turndown rate, with a repeatability of up to 1,000:1 (typically 100:1) for very high velocity or for very low flow rates, which are common in anaerobic digesters.
The FT1 is the most popular flow meter for wastewater air and gas applications. Features include a list of pure gases in the Pure Gas menu along with the ability to mixed up to five gases using Gas-SelectX®. It also offers Calibration Validation with CAL-V™ to verify the meter is functioning correctly in the field.
Features include:
The Fox Thermal Model FT4A includes a more extensive gas mix option in the Gas-SelectX® gas selection menu and CAL-V™ calibration validation. It is CE, FM, and FMc approved, along with ATEX and IECEx.
Features include:
The Fox Thermal Model FT4X thermal gas mass flow meter comes with an advanced data logger which maintains a 7-year history for longterm record-keeping. This flow meter offers multiple configurations and an AC power input option.
Features include:

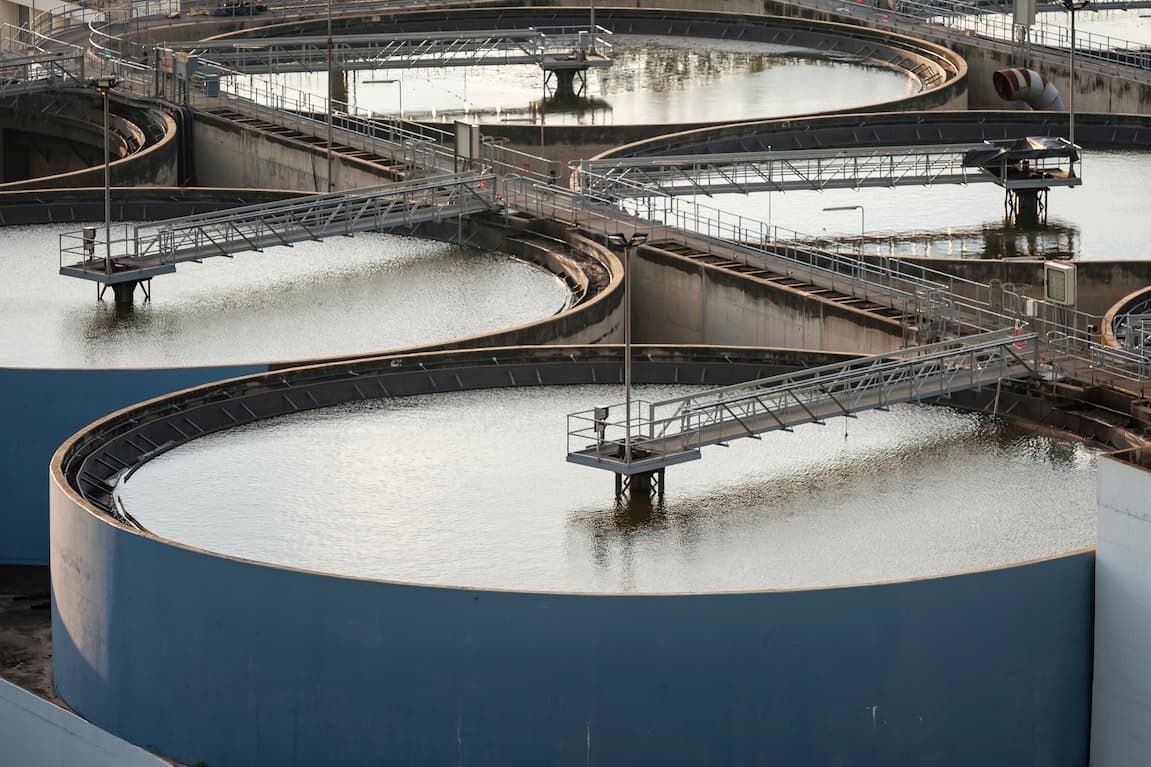

Properly managed, wastewater treatment reduces risks to the environment and public health caused by pathogens, toxic chemicals, antibiotics, and excess nutrients.

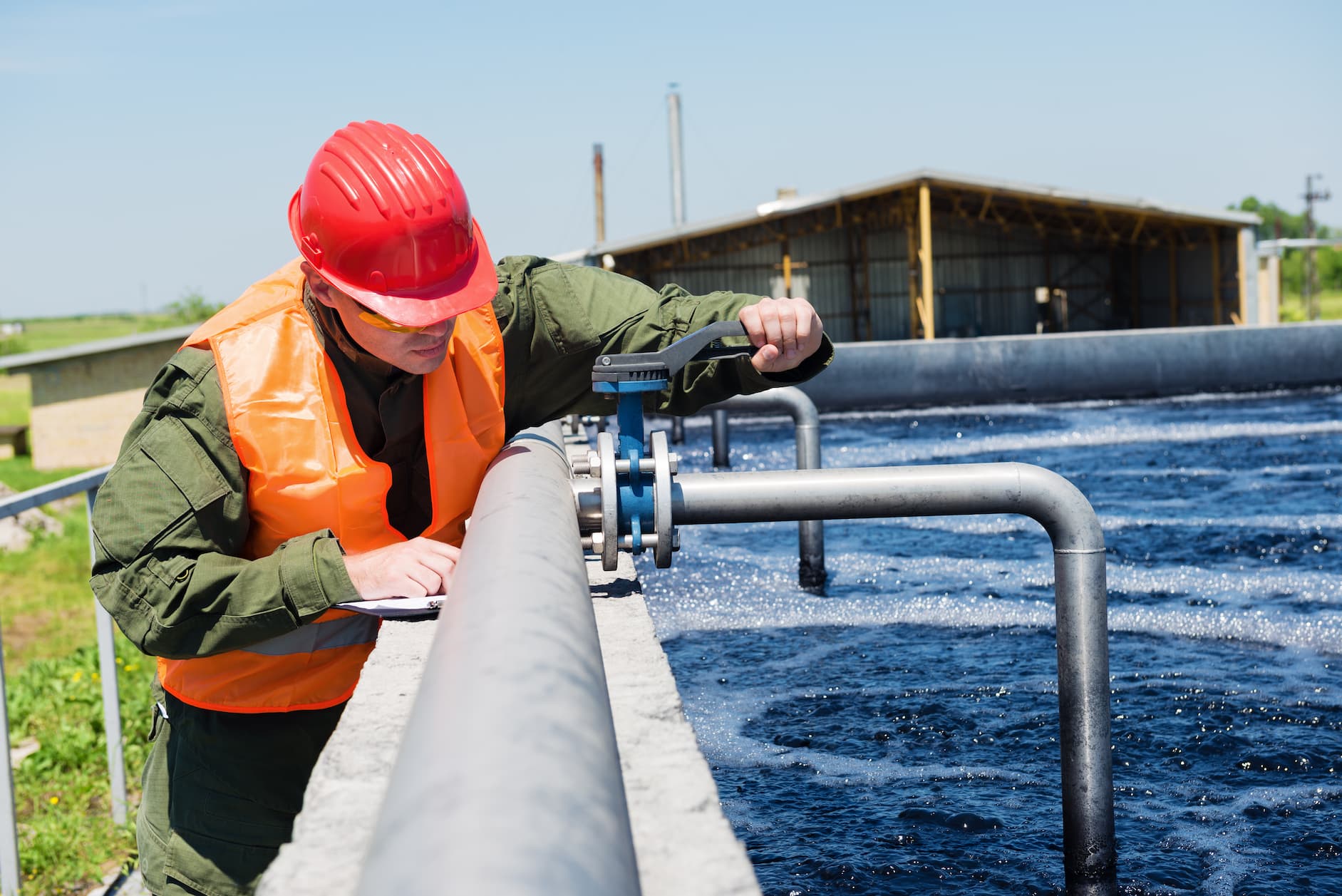

Gas flow measurements of compressed air in aerobic wastewater treatment can improve efficiency. For the anaerobic digestion of organic particles in wastewater, flow measurements can help keep track of biogas emissions. When biogas is used for heat or power generation, flow meters ensure accurate measurement of the fuel gas produced.
All of these operations in wastewater treatment plants require accurate measurement of gases flowing through the system.
An electromagnetic flow meter is not an option for measuring the flow of gases in wastewater applications, due to their low conductivity. Ultrasonic flow meters and Coriolis mass flow meters can be used, but these come at a higher cost than thermal mass flow meters.
The best flow meter technology for wastewater treatment facilities is thermal mass flow meters, which offer a low-cost, high-accuracy option with a wide turndown ratio.
For example, the Fox Thermal model FT4X thermal mass flow meter comes equipped with the state-of-the-art DDC-Sensor™ technology, new expanded Gas-SelectX® gas selection menu, CAL-V™ Calibration Validation, AC input power option, and a standard data logger with date and time stamp, for accurate emissions reporting.
Click below for three easy steps to select the best model for your application.
Wastewater treatment facilities play a crucial role in managing urban sanitation and safeguarding public health. However, these facilities also emit greenhouse gases, including methane (CH₄), which contributes significantly to global warming. Cogeneration is a smart approach that not only addresses methane emissions but also harnesses them for energy production.
Methane is a potent greenhouse gas, approximately 25 times more effective at trapping heat in the atmosphere than carbon dioxide over a 100-year period. Wastewater treatment plants (WWTPs) generate methane through the anaerobic decomposition of organic material during the treatment process.

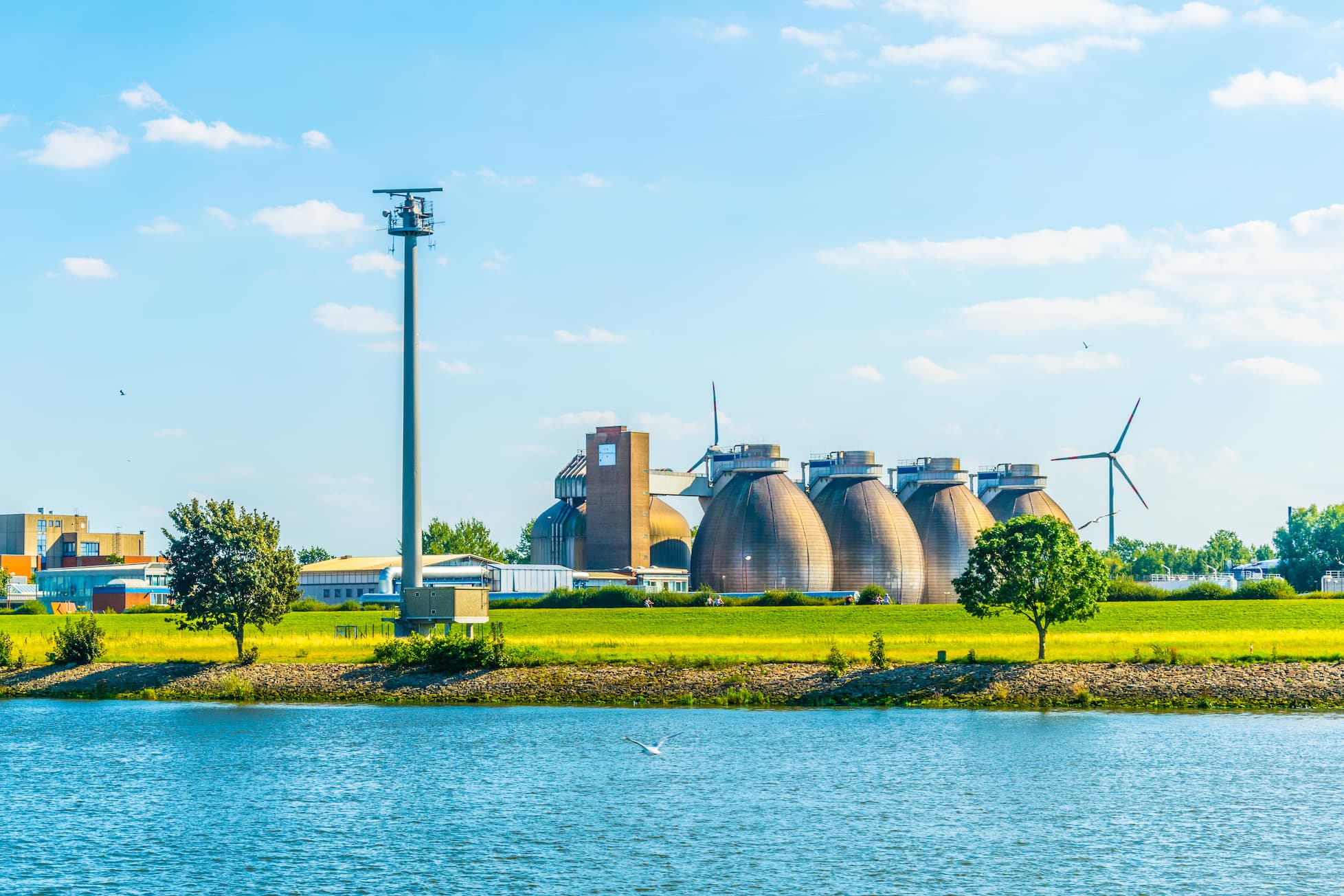

One critical source of methane emissions in WWTPs is the sewage sludge, a byproduct of wastewater treatment. In plants equipped with digesters, the anaerobic breakdown of sludge produces biogas, which primarily consists of methane. Traditionally, this biogas was either flared (burned off) or released into the atmosphere, contributing to climate change. Instead of releasing or flaring the biogas, it is captured to fuel cogeneration equipment that powers the facility.
Monitoring biogas flow is essential to enhance efficiency and make the most of this sustainable solution. Thermal mass flow meters offer a cost-effective solution for monitoring the flow of biogas used in cogeneration at wastewater treatment facilities.
